0101 KSS Wiring Duct With Non-Slip Cover (Close Slotted)
  |  |   |
| ● | Material: Warp proof self-extinguishing UL approved PVC, 94V-0 flammability rating, M1 rating NF fire resistant test and PE copolymer. |
| ● | Color: Grey. |

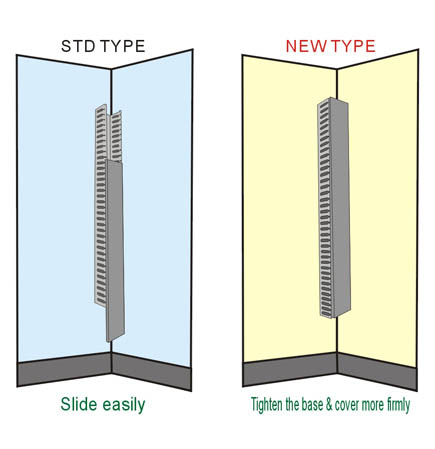

| ● | Close slot design facilitate easy installation or removal of cover. |
| ● | LDC series with larger slot is suitable for big wire, and vaporize the heat from cables much quickly. |
| ● | Slot can be cut when enlarge slot is necessary. |
| ● | Special color, size, length upon request of reasonable quantity. |
 SLOT:8mm |  SLOT:17mm |
| |||||||
| Item No. | WxH | Wires to be Contained (16-14 AWG) |
Length | ||||
| Slot | |||||||
| 8mm | 17mm | ||||||
| VQC-2530 | 25 x 30 | 15 ~ 25 pcs | 2M | ||||
| VQC-4040 | 40 x 40 | 60 ~ 70 pcs | |||||
| VQC-8040 | 80 x 40 | 120 ~ 135 pcs | |||||
| VQC-5050 | 50 x 50 | 80 ~ 90 pcs | |||||
| VQC-2560 | 25 x 60 | 40 ~ 45 pcs | |||||
| VQC-4060 | LQC-4060 | 40 x 60 | 100 ~ 115 pcs | ||||
| VQC-6060 | LQC-6060 | 60 x 60 | 120 ~ 135 pcs | ||||
| VQC-8060 | LQC-8060 | 80 x 60 | 180 ~ 210 pcs | ||||
| LQC-3365 | 33 x 65 | 60 ~ 75 pcs | |||||
| LQC-4565 | 45 x 65 | 110 ~ 120 pcs | |||||
| LQC-6565 | 65 x 65 | 180 ~ 200 pcs | |||||
| VQC-4080 | LQC-4080 | 40 x 80 | 120 ~ 135 pcs | ||||
| VQC-6080 | LQC-6080 | 60 x 80 | 180 ~ 210 pcs | ||||
| VQC-8080 | LQC-8080 | 80 x 80 | 240 ~ 290 pcs | ||||
| LQC-33100 | 33 x 100 | 180 ~ 200 pcs | |||||
| VQC-40100 | 40 x 100 | 130 ~ 175 pcs | |||||
| LQC-48100 | 48 x 100 | 215 ~ 250 pcs | |||||
| VQC-100100 | LQC-100100 | 100 x 100 | 300 ~ 400 pcs | ||||
