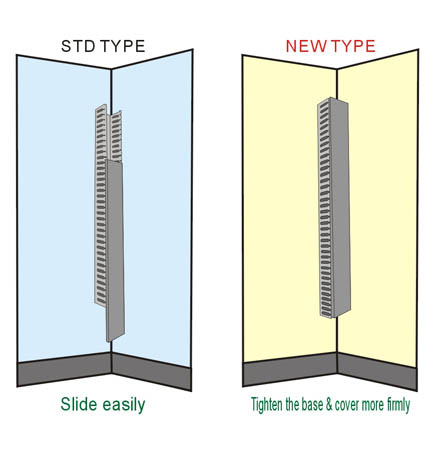

0101 KSS Wiring Duct With Non-Slip Cover (Slotted)



●Material: Warp proof self-extinguishing UL approved PVC, 94V-0 flammability rating, M1 rating NF fire resistant test and PE copolymer.
●Color: Grey
●These devices are for routing of wires within devices in factory installations.
●Features parallel holes on both sidewalls to facilitate cutting in wire application.
●Special color, size, length upon request of reasonable quantity.


AQ Type SLOT：8mm
HQ Type SLOT：4mm
SQ Type

Unit: mm
　 Item No. WxH Wires to be Contained
(16-14 AWG)		 Length
Slot Solid
8mm 4mm
　AQ-1X2HQ-1X2SQ-1X225 x 5020 ~ 25 pcs2M
　AQ-1X3HQ-1X3SQ-1X325 x 7560 ~ 75 pcs
　AQ-1.5X1　SQ-1.5X138 x 2520 ~ 23 pcs
　AQ-1.5X2HQ-1.5X2SQ-1.5X238 x 5060 ~ 70 pcs
　AQ-1.5X3HQ-1.5X3SQ-1.5X338 x 75120 ~ 135 pcs
　AQ-2X1HQ-2X1SQ-2X150 x 2525 ~ 45 pcs
　AQ-2X2　SQ-2X250 x 5080 ~ 90 pcs
　AQ-2X3HQ-2X3SQ-2X350 x 75180 ~ 200 pcs
　AQ-3X2HQ-3X2SQ-3X275 x 50180 ~ 200 pcs
　AQ-3X3HQ-3X3SQ-3X375 x 75200 ~ 250 pcs
　AQ-3X4　SQ-3X475 x 100240 ~ 300 pcs
