1110 KSS Circuit Board Track
| ● | Material: UL approved Nylon 66, 94V-2 |
| ● | Color: Natural, available in other colors. |
| ● | To be fixed by 2 sets of 3mm flat-head screw. |
| ★ | BT-90A,BT-155A,BT-160A with snap in design. |

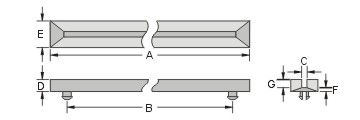

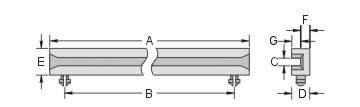

 BT-90, 120, 140 |  BT-160A |

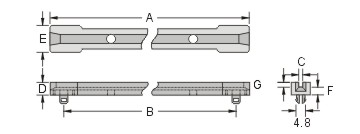

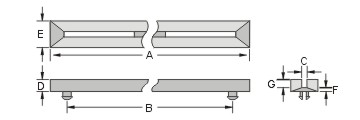

 BT-90A |  BT-77DBK |

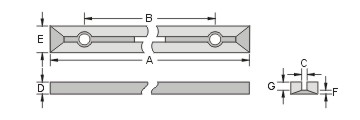

 BT-155A |
| |||||||||||
| Item No. | A | B | C | D | E | F | G | Packing | |||
| BT-90A | 89.5 | 77.6 | 2.0 | 4.5 | 9.7 | 1.5 | 3.0 | 100 pcs / Bag | |||
| BT-90 | 89.5 | 64.4 | 2.0 | 4.5 | 9.7 | 1.5 | 3.0 | ||||
| BT-120 | 120.0 | 95.5 | 2.0 | 4.5 | 9.5 | 1.5 | 3.0 | ||||
| BT-140 | 141.0 | 115.4 | 1.9 | 4.5 | 10.0 | 1.5 | 3.0 | ||||
| BT-155A | 154.0 | 141.0 | 2.0 | 4.6 | 6.5 | 1.3 | 3.3 | ||||
| BT-160A | 162.0 | 148.2 | 2.0 | 6.5 | 9.6 | 4.0 | 2.5 | ||||
| BT-77DBK | 77.0 | 67.0 | 1.4 | 6.0 | 6.6 | 3.0 | 3.0 | ||||
